ZXP Series 8

Retransfer Printer

  • Overview
  • Specs
  • Drivers
  • Quote

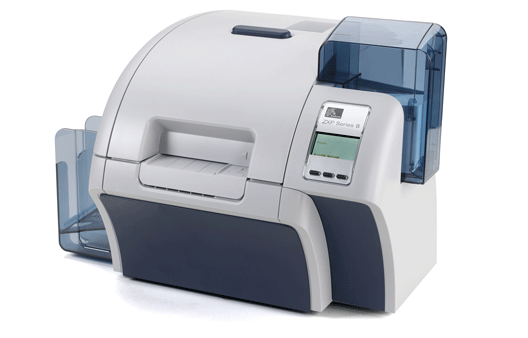

The Zebra ZXP Series 8 printer is based on new leading-edge software technology that enables high-performance printing and meets demanding enterprise needs for application integration and management.

ZMotif, Zebra's new XML standards-based printer and job control software platform, delivers the benefits of card printing transparently via Windows® certified drivers, along with an advanced Software Development Kit (SDK) and development tools for application integration and printer management.

The new ZXP toolbox application provides a complete management console for advanced printer and driver configuration and management. Features such as user role-based driver password protection, configuration save and restore capability, print logging, and a library suite of test cards, ensure that setup and management of ZXP Series 8 printers are a snap—whether by a single user or via advanced multiple printer configurations management.and return on investment.

Ideal For
1. Customized bank/ATM cards
2. Employee ID and access control cards
3. Student and faculty ID cards
4. Hotel and event cards
5. Membership and loyalty cards

Download ZXP Series 8 Brochure
General Specifications
» Zebra True Colours ix Series high-performance ribbons with intelligent media technology
» Load-N-Go drop-in ribbon cartridge
» Microsoft Windows drivers
» USB connectivity
» Covered 100 card feeder (30 mil)
» 45 card output hopper (30 mil)
» 16 character LCD display
» 300 dpi print resolution
» 32 MB memory standard
» Two-year warranty on printer
» Kensington physical lock slot

Color Printing
» Direct-to-Card Dye Sublimation
» 300 dpi (12 dots/mm)

Card Specifications
» Card materials: PVC, PVC Composite
» Card size:CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
» Specialty cards: Smart card contact and contactless (30 mil card only)
» Technology cards: Magnetic stripe ISO 7811,Smart card contact and contactless (30 mil card only), contactless smart cards, UHF cards
» Card thickness:30 mil

Communications Interface
» USB V2.0 (cable included) - standard
» Built-in 10/100 Ehternet - optional

» Width: 7.9" (201 mm)
» Depth: 14.5" (368mm)
» Height: 12.2" (309mm)
» Weight: 12.2 lbs (5.53 kg)
» Electrical
» 100-240 Volts AC, 50-60 Hz (auto switching)
» Ventilation: Free air

» Operating temperature:60° F (15° C) to 86° F (30° C)
» Operation humidity:20% to 65% non-condensing
» Storage Temperature:23° F (-5° C) to 158° F (70° C)
» Storage Humidity:20% to 70% non-condensing
» Ventilation: Free air

» Magnetic stripes encoder
» Smart card contact station
» Combined MIFARE
» Encoding over Ethernet and USB
See this page for a full list
