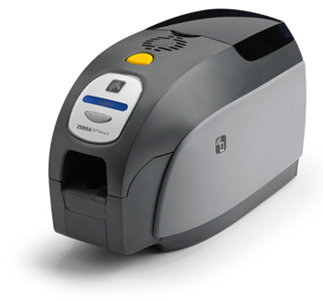

The Zebra ZXP Series 3 Card Printer combines the affordable pricing of the Zebra Value Class printers (Zebra P110i/P120i Series) with the powerful printing capabilities of the Zebra Performance Class Printers (Zebra P330i/P430i Series). This hybrid Zebra card printer offers a great price point and high performance that works for many plastic card applications, from standard employee badges and student IDs to complicated access control cards and smart cards to high-security financial cards, including ATM cards!

Zebra ZXP3 card printer features:
» Affordable on-site, on-demand direct-to-card printing
» Flexible single- or dual-sided printing, color or monochrome
» Intuitive design for ease of use and simplified training requirements
» ZRaster host-based image processing technology for increased throughput and image quality
» True Colours ix Series high-performance ribbons designed for high-speed, high-quality image printing
» Compact footprint that fits in any work area
» Fast print speed for improved operations efficiency

Download ZXP Series 3 Brochure
General Specifications
» Zebra True Colours ix Series high-performance ribbons with intelligent media technology
» Load-N-Go drop-in ribbon cartridge
» Microsoft Windows drivers
» USB connectivity
» Covered 100 card feeder (30 mil)
» 45 card output hopper (30 mil)
» 16 character LCD display
» 300 dpi print resolution
» 32 MB memory standard
» Two-year warranty on printer
» Kensington physical lock slot

Color Printing
» Direct-to-Card Dye Sublimation
» 300 dpi (12 dots/mm)

Card Specifications
» Card materials: PVC, PVC Composite
» Card size:CR-80 ISO 7810, 2.12" (54 mm) x 3.38" (86 mm)
» Specialty cards: Smart card contact and contactless (30 mil card only)
» Technology cards: Magnetic stripe ISO 7811,Smart card contact and contactless (30 mil card only), contactless smart cards, UHF cards
» Card thickness:30 mil

Communications Interface
» USB V2.0 (cable included) - standard
» Built-in 10/100 Ehternet - optional

Mechanical
» Width: 7.9" (201 mm)
» Depth: 14.5" (368mm)
» Height: 12.2" (309mm)
» Weight: 12.2 lbs (5.53 kg)
» Electrical
» 100-240 Volts AC, 50-60 Hz (auto switching)
» Ventilation: Free air

Electrical
» 100-240 Volts AC, 50-60 Hz (auto switching)
» Ventilation: Free air

Environmental
» Operating temperature:60 F (15 C) to 86 F (30 C)
» Operation humidity:20% to 65% non-condensing
» Storage Temperature:23 F (-5 C) to 158 F (70 C)
» Storage Humidity:20% to 70% non-condensing
» Ventilation: Free air

Options
» Magnetic stripes encoder
» Smart card contact station
» Combined MIFARE
» Encoding over Ethernet and USB
See this page for a full list
