ZXP Series 8

with Lamination

  • Overview
  • Specs
  • Drivers
  • Quote

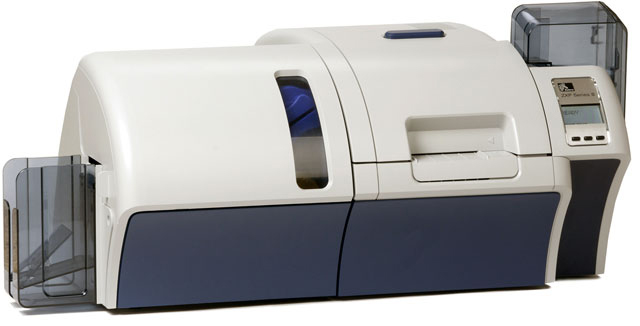

The Zebra ZXP Series 8 Duplex ID printer with Laminator is the perfect solution for high-volume, high-security I.D. card printing applications.

Lamination Capabilities:
Zebra ZXP ID Printer with Laminator is capable of dual-sided card printing, and it can laminate both sides of a plastic card simultaneously. Covering your ID cards and badges with laminate provides an extra layer of plastic card protection and security which is an essential security element for federal credentialing, state driver’s licensing, and for organizations with high security requirements. Secure lamination is ideal for printing:
» Driver’s Licenses
» Government & Military ID Cards
» High Security Access Control ID Cards
» Law Enforcement and Correctional Facility ID Cards
» Airport Personnel ID Cards
» Applications requiring secure issuance of long-lasting, tamper-evident IDs

The ZXP Series 8 laminator also offers the lowest total cost of card printing ownership with its patented, waste-free laminates and by providing increased card durability from daily wear and tear.

Key features of the Zebra ZXP Series 8 Duplex ID printer with laminator include:
» Dual-sided card printer with laminator module:
» Reverse-transfer printing produces photo-quality images and print resolution
» True edge-to-edge printing in full color or monochrome black
» Can print on uneven card surfaces such as smart cards
» USB and Ethernet connectivity are standard
» Wi-Fi connectivity can be ordered by contacting an ID Expert at 877-868-0012
» Microsoft Windows Certified drivers
» 150 card capacity input hopper
» 64MB memory
» Simultaneous 2-sided transfer process produces a maximum print speed of 190 cph (single-sided) or 170 cph (dual-sided
» XML-based SDK enables advanced print and encoding features
» Advanced 21-character, 6-lin LCD operator display
» Lockable card feeder
» Two year limited printer, and lifetime printhead warranty
» 304 dpi (12 dots/mm) print resolution
» Uses True Colours iSeries intelligent ribbons and laminates
» All major card encoding options are supported and available

Enhanced Photo-Quality Printing
The Zebra ZXP Duplex ID Printer uses a retransfer printing process, which produces higher image quality and allows true edge-to-edge printing - even on uneven surfaces such as smart cards. This also eliminates the white border left by even the best dye sublimation printers.

Superior Performance
The ZXP Series 8 Duplex ID Printer offers amazing print speeds. Single sided throughput is 190 cards per hour (cph), and dual-sided printing is 170 cph. Zebra has developed an innovative approach to retransfer printing that allows both sides of a card to be printed simultaneously, resulting in these incredible throughput speeds. Additionally, the card feeding and retransfer process on the ZXP allow multiple cards to be moving through the machine at the same time. No more waiting for each card to finish before the next one moves through.

Easy Integration
The ZMotif XML-based software includes management tools and a modular design that gives you the flexibility to integrate with enterprise applications and add a variety encoding options as needed. The ZXP Series 8 Duplex can handle anything from employee badging to high-security government issued ID cards including smart card encoding.

The engineers at Zebra redesigned the ZXP from the ground up, integrating years of manufacturing knowledge in this new platform. The ZXP Series 8 is designed inside and out to be reliable and durable - reducing downtime and increasing your ROI. The ZXP Series 8 has a two-year manufacturers warranty and a lifetime printhead warranty.

Wi-Fi Connectivity
Zebra ZXP Series 8 now features a factory-installed wireless connectivity option. The ZXP Series 8 WiFi supports 802.11b and 802.11g networks and a wide range of security standards and protocols, including Wired Equivalent Privacy (WEP) and advanced Wi-Fi protected access WPA/WPA2 standards. Wireless card printing allows you to print plastic cards on-site and on-demand withminimal IT infrastructure, saving you time and money.

Zebra ZXP Series 8 retransfer printers are ENERGY STAR® qualified—consuming less electricity than previous Zebra printer models and reducing their impact on the environment. Zebra is committed to environmental sustainability and expanding eco-friendly card printer products

Available Configurations of Zebra ZXP Series 8 with Laminator:
Z83-000C0000US00 - Dual-Sided Printer with USB/Ethernet & Single-Sided Laminator
Z83-0M0C0000US00 - Dual-Sided Printer with USB/Ethernet, Magnetic Encoder & Single-Sided Laminator
Z84-000C0000US00 - Dual-Sided Printer with USB/Ethernet & Dual-Sided Laminator
Z84-0M0C0000US00 - Dual-Sided Printer with USB/Ethernet, Magnetic Encoder & Dual-Sided Laminator

Available Configurations of Zebra ZXP Series 8:
Z81-000C0000US00 - Single-Sided Printer with USB/Ethernet
Z81-0M0C0000US00 - Single-Sided Printer with USB/Ethernet & Magnetic Encoder
Z82-000C0000US00 - Dual-Sided Printer with USB/Ethernet
Z82-0M0C0000US00 - Dual-Sided Printer with USB/Ethernet & Magnetic Encoder

MIFARE/Contactless/Contact Encoding configurations also available.

Download ZXP Series 8 with Lamination Brochure
General Specifications
» Dye sublimation retransfer
» Full color or monochrome retransfer printing
» Single- and dual-sided printing
» Max print speed single-side 190 cph
» Max print speed dual-sided 180 cph
» Photo quality image
» Over-the-edge printing on standard CR80 media

Standard Features
» USB and Ethernet connectivity
» Single-card feed capability
» 150 card capacity feeder (30 mil)
» 15 card reject hopper (30 mil)
» 100 card output hopper (30 mil)
» i Series™ intelligent media technology
» Auto-calibration of media
» 21-character, 6 line LCD operator display
» 304 dpi (12.0 dots/mm) print resolution
» 64 MB memory standard
» Lifetime warranty on printhead
» 2-year limited warranty on printer
» Microsoft® Windows® certified drivers

Options and Accessories » Laminator—single-sided and dual-sided
Lockable enclosure/card feeder
» Extended product warranty programs
» 802.11b/g wireless connectivity
» Card input hopper (150 cards 30 mil)

Laminator Specifications
» Single-or dual-sided lamination option (with dual-sided printer only)
» 180 cards per hour dual-sided printing and dual-sided lamination
» GSA FIPS 201 approved (dual-sided lamination)
» Uses Zebra True Secure i Series laminates only
» Laminate for the top and bottom of cards sold separately
» Custom-coded laminates available

Encoding Options & Specifications
» Smart card contact station—ISO 7816
» Magnetic stripe encoder—ISO 7811 and JIS-II (high and low coercivity)
» Combined MIFARE® ISO 14443 (13.56 MHz) and ISO 7816 contact encoder
» Combined ISO 15693 HID® iClass® (13.56 MHz) and ISO 7816 contact encoder
» UHF Gen 2 RFID encoder

ZMotif Software
» Microsoft Windows Certified Printer Drivers Supported: Windows XP, Windows Vista®, Windows Server® 2003, Windows 7 -- 32 bit and 64 bit compatible

Driver Features:
» Graphical card orientation setting to visualize card printing setup and configuration
» Card source and card type selection
» Complete graphical control over area and element selection of black extraction parameters
» Auto sensing of ribbon type, laminator and smart card encoding options

Toolbox Utility Features:
» Printer configuration tools and utilities for complete control over all printer functions and features
» Optional password protection settings and user role-based security settings prevent accidental or unauthorized driver or printer configuration changes
» Complete technology card management enables setup and testing of all printer and encoder features and functionality
» Printer test cards and diagnostics utilities ensure error-free printing and fast troubleshooting capabilities

XML-Based SDK:
» Downloadable SDK for custom applications
» XML-based SDK enables third parties to quickly add advanced print and encoding features to the ZXP printer
» Capabilities include direct access to PC/SC Smart Card encoder driver and XML-based job control print job specifications
» Support for complete Uv printer and inhibit pane support

Plastic Card specifications:
» Card thickness: 30 – 40 mil
» Card size: ISO 7810 format, Type ID-1, CR-80 size
» Card material: PVC and composite, ABS cards, PET, PET-G, Teslin® composite, and polycarbonate
» Specialty cards: transparent (IR-blocked) or translucent card 30 mil (clear and colored)
» Technology cards: contact and contactless smart cards, UHF cards

Communications interfaces:
» USB V2.0
» 10/100 Ethernet (firmware to enable Ethernet available for download)

» Single-phase AC power
» 100V~240V AC and 50-60 HZ

Physical Printer:
» Height (w/card hoppers): 13.2"/334 mm
» Width (w/card hoppers): 18.75"/476 mm
» Depth: 20.4"/519 mm
» Weight (printer only): 27.5 lbs/12.5 kg

» Operating Temperature: 59º F/15º C to 77º F/25º C
» Storage Temperature: 23º F/-5º C to 131º F/55º C
» Operating Humidity: 20% to 80% inclusive, non-condensing
» Storage Humidity: 10% to 90% inclusive, non-condensing
» Shipping Temperature: -40º F/-40º C to 140º F/60º C
» Shipping Humidity: 10% to 90% inclusive, non-condensing
» Media should not be above 140º F/60º C for longer than 200 hours, and above 90% relative humidity at 104º F/40º C for longer than 100 hours
See this page for a full list
